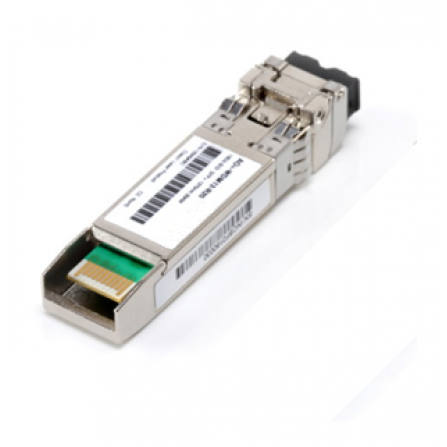

10G SFP+ Transceiver
10G SFP+ Transceiver
Features
● Laser Class 1
● Electrical interface compliant to SFP+ MSA
● I2C Management Interface
● Low Power Consumption
● Compliant to SONET OC192/SDH STM64 and 802.3ae
● Hardware/Software Rate Select Function for 8.5G and 9.95~16G Data Rate
● Lower Power Consumption
● Compliant to SFP+ Electrical MSA SFF-8431
● RoHS 6/6 Compliant
● Laser Class 1
● Electrical interface compliant to SFP+ MSA
● I2C Management Interface
● Low Power Consumption
● Compliant to SONET OC192/SDH STM64 and 802.3ae
● Hardware/Software Rate Select Function for 8.5G and 9.95~16G Data Rate
● Lower Power Consumption
● Compliant to SFP+ Electrical MSA SFF-8431
● RoHS 6/6 Compliant
Applications
● Data Center
● Switch and Router
● Wireless Repeater
● SONET (OC-192)/SDH (STM64) Line Card
● 4G LTE Wireless Backhauls
● High Speed Point-to-Point Links
● Data Center
● Switch and Router
● Wireless Repeater
● SONET (OC-192)/SDH (STM64) Line Card
● 4G LTE Wireless Backhauls
● High Speed Point-to-Point Links
| P/N | Specifications | Connector | |||||
| Data Rate | Distance | Wavelength | FP | PD | Media | ||
| MD4AO-8192-SR | 10G/ps | 300M | 850 | VSCEL | PIN | MM | LC |
| MD4AO-3192- LR02 | 10G/ps | 2KM | 1310 | FP | PIN | SM | LC |
| MD4AO-3192-LR | 10G/ps | 10KM | 1310 | DFB | PIN | SM | LC |
| MD4AO-3192-LRM | 10G/ps | 220M | 1310 | DFB | PIN | MM | LC |
| MD4AO-3192-ER | 10G/ps | 40KM | 1310 | DFB | PIN | SM | LC |
| MD4AO-3192-ER | 10G/ps | 40KM | 1550 | DFB | PIN | SM | LC |
| MD4AO-5192-ZR | 10G/ps | 80KM | 1550 | DFB | APD | SM | LC |
| MD4AO-5192-EZR100 | 10G/ps | 100KM | 1550 | DFB | APD | SM | LC |
| MD4AO-5192-EZR120 | 10G/ps | 120KM | 1550 | DFB | APD | SM | LC |
| MD4AO-CXXXX-R20 | 10G/ps | 20KM | CWDM XXXXnm | DFB | PIN | SM | LC |
| MD4AO-CXXXX-R40 | 10G/ps | 40KM | CWDM XXXXnm | DFB | PIN | SM | LC |
| MD4AO-CXXXX-R80 | 10G/ps | 80KM | CWDM XXXXnm | DFB | APD | SM | LC |
| MD4AO-DXX-R40 | 10G/ps | 40KM | DWDM CHXX | DFB | PIN | SM | LC |
| MD4AO-DXX-R80 | 10G/ps | 80KM | DWDM CHXX | DFB | APD | SM | LC |
| MD4AO-DTXX-R80 | 10G/ps | 80KM | Tunable DWDM | DFB | APD | SM | LC |
| BIDI (WDM) SFP+ | |||||||
| MD4AO-WDM13-R20 | 10G/ps | 20KM | 1330 | DFB | PIN | SM | LC |
| MD4AO-WDM12-R20 | 10G/ps | 20KM | 1270 | DFB | PIN | SM | LC |
| MD4AO-WDM13-R40 | 10G/ps | 40KM | 1330 | DFB | PIN | SM | LC |
| MD4AO-WDM12-R40 | 10G/ps | 40KM | 1270 | DFB | PIN | SM | LC |
| MD4AO-WDM13-R60 | 10G/ps | 60KM | 1330 | DFB | PIN | SM | LC |
| MD4AO-WDM12-R60 | 10G/ps | 60KM | 1270 | DFB | PIN | SM | LC |
| MD4AO-WDM13-R70 | 10G/ps | 70KM | 1330 | DFB | PIN | SM | LC |
| MD4AO-WDM12-R70 | 10G/ps | 70KM | 1270 | DFB | PIN | SM | LC |
| MD4AO-WDM14-R80 | 10G/ps | 80KM | 1490 | DFB | PIN | SM | LC |
| MD4AO-WDM15-R80 | 10G/ps | 80KM | 1550 | DFB | PIN | SM | LC |
| 6G LTE SFP | |||||||
| MD4AO-36G-R02D | 6.25G/ps | 2km | 1310 | DFB | PIN | SM | LC |
| MD4AO-36G-R10D | 6.25G/ps | 10km | 1310 | DFB | PIN | SM | LC |
| 10G LTE SFP (Industrial temperature) | |||||||
| MD4AO-3192-LRI | 10G/ps | 10km | 1310 | DFB | PIN | SM | LC |
| 10G SFP+ with CDR | |||||||
| MD4AO-3192-LRS | 10G/ps | 10km | 1310 | DFB | PIN | SM | LC |
| 8G FC SFP | |||||||
| MD4AO-88F-SW | 8.25G/ps | 300m | 850 | VSCEL | PIN | MM | LC |
| MD4AO-38F-LW | 8.25G/ps | 10km | 1310 | DFB | PIN | SM | LC |
| 16G FC SFP | |||||||
| MD4AO-816F-SW | 16G/ps | 300m | 850 | VSCEL | PIN | MM | LC |
| MD4AO-316F-LW | 16G/ps | 10km | 1310 | DFB | PIN | SM | LC |
| MD4AO-CXX16F-R40D | 16G/ps | 40KM | CWDM XXXXnm | DFB | PIN | SM | LC |
| MD4AO-DXX16F-R40D | 16G/ps | 40KM | DWDM CHXX | DFB | PIN | SM | LC |
