200G QSFP56 AOC

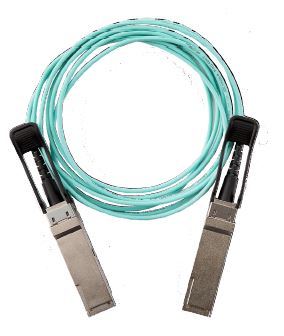

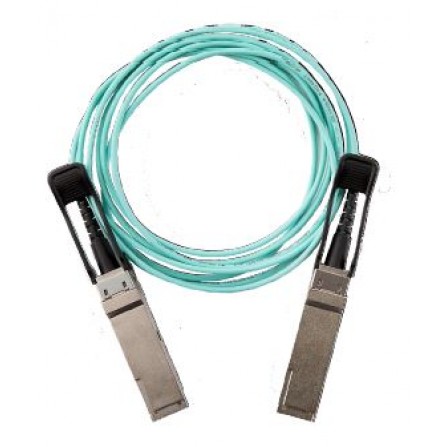

200G QSFP56 Active Optical Cable AOC
‧Low latency DSP-free electronics-based CDR
‧Multi-data rate up to 56.15 Gb/s per lane
‧PAM4 modulation
‧HPC-grade BER ≤ 5×10-8
‧Single 3.3 V power supply
‧Low power consumption : 3.6 W per cable end with all CDRs enabled
‧Up to 100 m length
‧SFF-8665 compliant QSFP56 port
‧SFF-8636 compliant I2C management
interface
‧Commercial operating case temperature
range: 0 to 70°C
‧Hot pluggable
‧RoHS/ REACH com pliant
‧TUV-certified
‧LSZH, LSZH/OFNR or OFNP-rated cable
‧ Copper wire (DAC): suitable for short distance network lines below 3M
‧ Optical fiber cable (AOC): The optical fiber cable has high loss resistance and is suitable for network lines above 3M
●Key features:
‧Low latency DSP-free electronics-based CDR
‧Multi-data rate up to 56.15 Gb/s per lane
‧PAM4 modulation
‧HPC-grade BER ≤ 5×10-8
‧Single 3.3 V power supply
‧Low power consumption : 3.6 W per cable end with all CDRs enabled
‧Up to 100 m length
‧SFF-8665 compliant QSFP56 port
‧SFF-8636 compliant I2C management
interface
‧Commercial operating case temperature
range: 0 to 70°C
‧Hot pluggable
‧RoHS/ REACH com pliant
‧TUV-certified
‧LSZH, LSZH/OFNR or OFNP-rated cable
●Applications:
‧IEEE 802.3cd 200GBASE SR4
‧IBTA InfiniBand HDR
‧Data center: servers, switches, storages and NIC adapters
‧Proprietary HPC interconnections
