‧ Copper wire (DAC): suitable for short distance network lines below 3M

‧ Optical fiber cable (AOC): The optical fiber cable has high loss resistance and is suitable for network lines above 3M



●Key features:

‧Up to 25.78 Gbps per channel
‧4-channel full-duplex
‧Single 3.3 V power supply
‧Low-power consumption: 1.65 W per cable end
‧Up to 150 m with OM3 fibers
‧Hot pluggable
‧Commercial operating case temperature range: 0 to 70° C
‧LSZH, LSZH/OFNR or OFNP-rated cables
‧RoHS/REACH compliant
‧TUV/UL-certified



●Applications:

‧10/25/40/50/100G Ethernet
‧InfiniBand 4×EDR, 4×FDR, 4×QDR
‧Proprietary HPC interconnections
Description

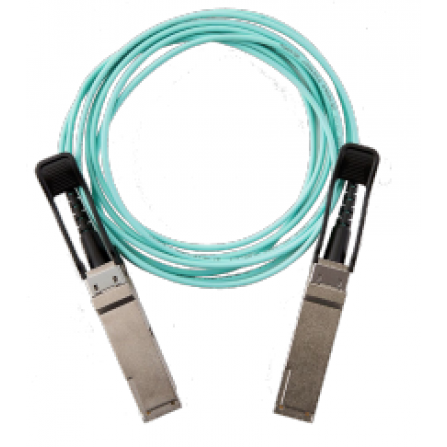

‧QSFP28-IB AOC fully takes advantage of the high transmission bandwidth, low power consumption, and long reach.
