‧ Copper wire (DAC): suitable for short distance network lines below 3M

‧ Optical fiber cable (AOC): The optical fiber cable has high loss resistance and is suitable for network lines above 3M



100G QSFP28 active optical cables are compliant with 100GBASE-SR4 and CAUI-4 specification per IEEE 802.3bm.Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8. Supports 100 Gbps data rate links of up to 70m/100m via OM3/OM4, respectively.Low power consumption of max 2.5W,Hot pluggable electrical interface,Using standard 12/8 lane optical fiber with 3-mm round cable.
0 to 70°C case temperature operating range,RoHS-6 Compliant (lead-free)

●Key features:

‧Up to 25.78 Gbps per channel
‧4 independent full-duplex
‧Single 3.3 V power supply
‧Low power consumption: < 1.9 W on
‧QSFP end, < 0.8 W on SFP end
‧Up to 150 m with OM3 fibers
‧Hot pluggable
‧RoHS com pliant
‧Commercial operating case temperature range: 0 to 70°C
‧LSZH, LSZH/OFNR, OFNP-rated cables
‧TUV/UL-certified



●Applications:

‧10/25G Ethernet
‧Data center: Servers, switches, storages and NIC adapters
Description

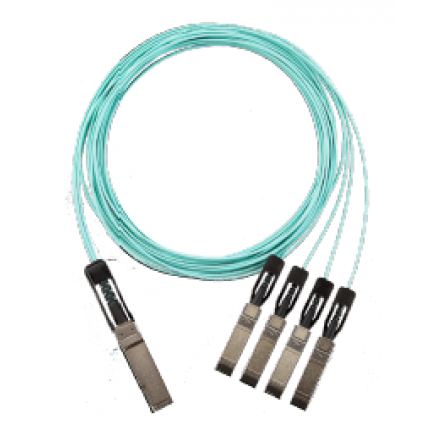

‧QSFP28-to-4×SFP28 Breakout AOC fully takes advantage of the high transmission  bandwidth, low power consumption, and long reach.

Part Number	Product Description	AWG
MD13AOC-QSFP28-4SFP28-3M	100G QSFP28 to 4x25G SFP28 AOC, 3 meters	N/A
MD13AOC-QSFP28-4SFP28-5M	100G QSFP28 to 4x25G SFP28 AOC, 5 meters	N/A
MD13AOC-QSFP28-4SFP28-7M	100G QSFP28 to 4x25G SFP28 AOC, 7 meters	N/A
MD13AOC-QSFP28-4SFP28-10M	100G QSFP28 to 4x25G SFP28  AOC, 10 meters	N/A
MD13AOC-QSFP28-4SFP28-15M	100G QSFP28 to 4x25G SFP28 t AOC, 15 meters	N/A
