800G QSFP-DD DAC

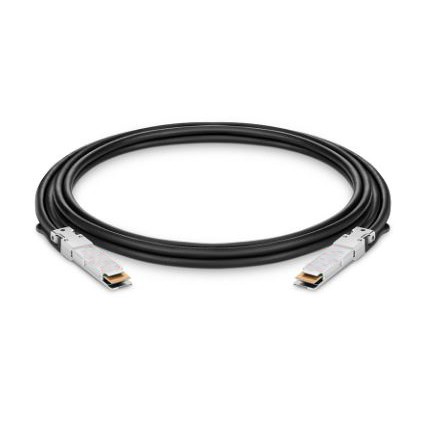

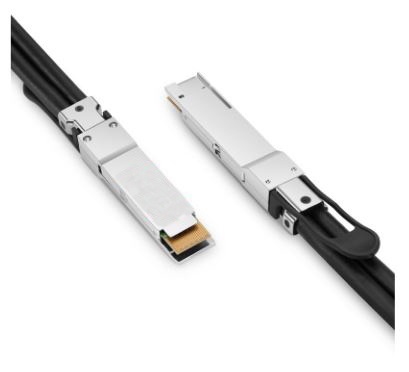

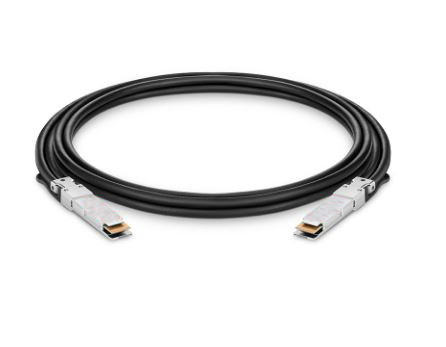

800G QSFP-DD Passive Direct Attach Copper Cable DAC
-Hot-pluggable QSFP-DD form factor full-duplex passive copper cable
-8 signal channels supported by 16 high-speed copper pairs
-Data rate up to 56Gbps (50G PAM4) or 112Gbps (100G PAM4) per channel
-Compliant with QSFP-DD MSA
-Operating case temperature of 0-70℃
-Single 3.3V supply voltage
-Bit Error Rate (BER) better than 1E-15
-RoHS compliant
-LSZH (Low Smoke Zero Halogen) jacket
-LF (Lead Free) HF (Halogen Free) PCB
-I2C management interface
‧ Copper wire (DAC): suitable for short distance network lines below 3M
‧ Optical fiber cable (AOC): The optical fiber cable has high loss resistance and is suitable for network lines above 3M
‧800G QSFP-DD Passive Direct Attach Copper Cable (DAC) assemblies as a high-speed, cost-effective alternative to fiber optics in the server racks of 800G data center. It contains 16 high-speed copper pairs to support 8 signal channels with a data rate of up to 112Gb/s per channel, providing power-efficient connectivity for 800G short-distance interconnects up to 1.8 meters. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
●Applications:
‧800G Ethernet
‧Intraconnection of Data Center Server Racks
‧Data center: servers, switches, storages and NIC adapters
‧Proprietary HPC interconnections
