100G QSFP28 Cable

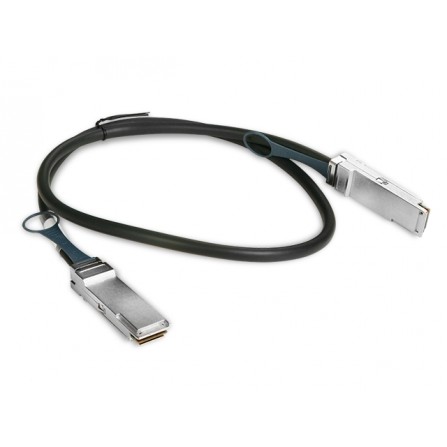

100G QSFP28 Twinax Copper Cable (DAC)
Applications:
● Supports aggregate data rates of 100Gbps
● Low EMI radiation Switches, servers and routers
● Data Center networks
● High performance computing
● Telecommunication and wireless infrastructure
● Medical diagnostics and networking
● Test and measurement equipment
‧ Copper wire (DAC): suitable for short distance network lines below 3M
‧ Optical fiber cable (AOC): The optical fiber cable has high loss resistance and is suitable for network lines above 3M
‧ QSFP28 passive copper cable assembly features eight differential copper pairs, providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet (4x25Gbps) and InfiniBand EDR (Enhanced Data Rate ) requirements. These 100G copper cable assembly features a unique construction with individually wrapped twinax pairs, resulting in low insertion loss and low cross talk.
| Part Number | Product Description | AWG |
| MD13DAC-QSFP28-50CM | 100GBASE-CR4 QSFP28 DAC, 50cm passive | 28/30 |
| MD13DAC-QSFP28-1M | 100GBASE-CR4 QSFP28 DAC, 1m passive | 28/30 |
| MD13DAC-QSFP28-2M | 100GBASE-CR4 QSFP28 DAC, 2m passive | 26 |
| MD13DAC-QSFP28-3M | 100GBASE-CR4 QSFP28 DAC, 3m passive | 26 |
