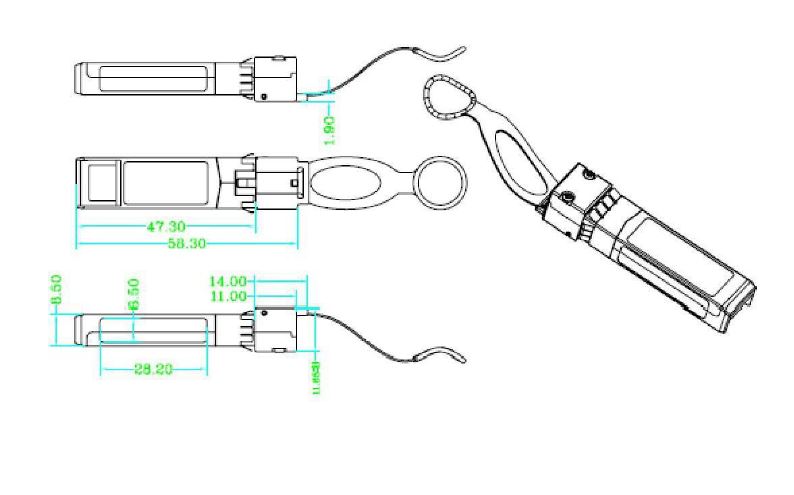

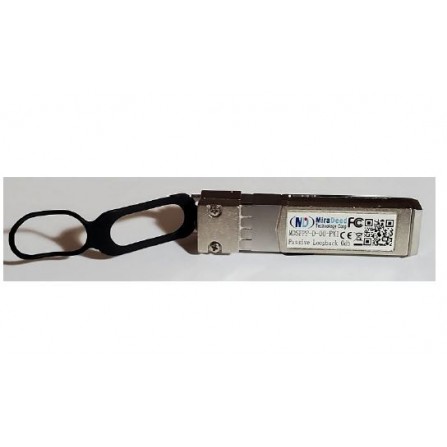

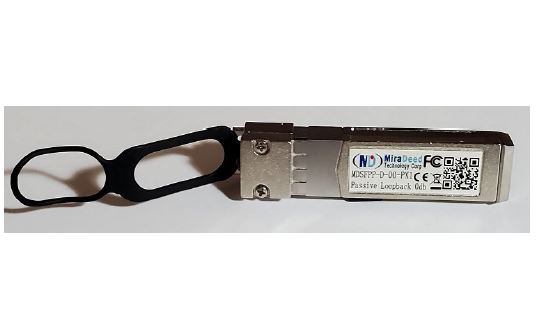

Universal SFP28 Port Testing Passive Loopback Module

•SFP28 MSA Compliant, Backward compatible with 10G SFP

•Enables system communication over I2C bus
• Dual LED indicator to display module status
• Built-in digital diagnostic functions
• Case Temperature range from -20 ℃ to 85 ℃
• Compliant with SONET, SDH, GBE, FC
• Adjustable Power Consumption in Different Option
• Over-Heating Protect circuit
• Test Counting available by Firmware setting

Download

Features:

•SFP28 MSA Compliant, Backward compatible with 10G SFP

•Enables system communication over I2C bus
• Dual LED indicator to display module status
• Built-in digital diagnostic functions
• Case Temperature range from -20 ℃ to 85 ℃
• Compliant with SONET, SDH, GBE, FC
• Adjustable Power Consumption in Different Option
• Over-Heating Protect circuit
• Test Counting available by Firmware setting



Applications:

• Board and System Level Testing

• Test and Measurement

• Switch and Router chamber testing

• Loopback testing of 25G Ethernet SFP28 host  ports

• 100Mb/s to 25.78125 Gbps
