MiniSAS Cable

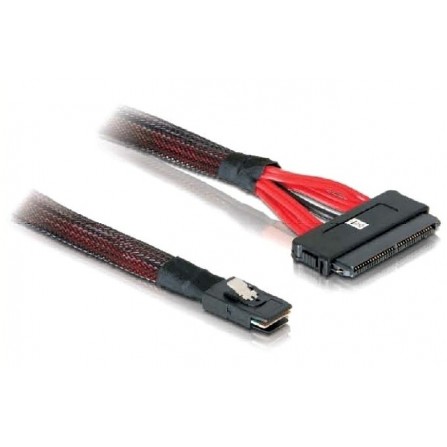

Internal MiniSAS SFF-8087 36 pin to SAS SFF-8484 32 pin cable

Product No: 6799509

Internal MiniSAS SFF-8087 36 pin to SAS SFF-8484 32 pin cable

Internal MiniSAS Cable assembly.It is used for connecting a SATA/SAS controller to a SATA/SAS backplane.

Features

●Provides point-to-point signal integrity.

●Compatible with SAS-to-SATA.

●High-speed data transmission line used on server, storage system, disk array and high-speed Internet connections.

●Thinner and more flexible cables allow for more efficient and flexible routing.

Characteristics:

Cable End

Cable Assembly

Pin

Description:

Internal MiniSAS 36pin to SAS 32pin cable

Safety:

100% open & short testing

						Withstanding Voltage: DC 300V 0.01Sec

						Insulation Resistance: 5M ohm (Min)

						Conductive Resistance: 5 ohm (Max)

						Working Temperature: -25ºC ~ +85ºC

Feature:

1.Length: Available from 0.3m up to 1m

						2.Provides point-to-point signal integrity

						3.Compatible with SAS-to-SATA

						4.High-speed data transmission line, Used on server, storage system,

						disk array and high-speed Internet connection

						5.Thinner and more flexible cables allow for more efficient routing with

						6.Connector standard: SFF-8087 and SFF-8484

						Mechanical Character:

						Premold: PE Low Density
