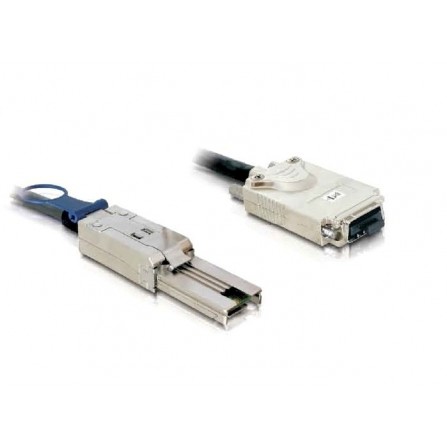

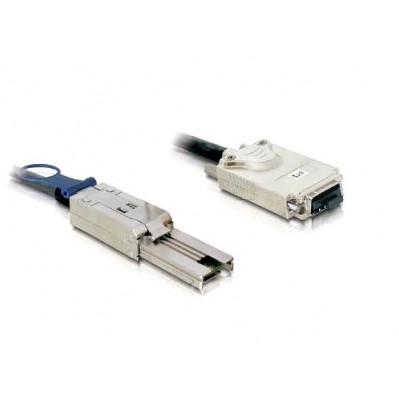

| External Mini SAS to InfiniBand(SFF-8088 to SFF-8470) |
|
|
|
100% open & short testing
Withstanding Voltage: DC 300V 0.01Sec
Insulation Resistance: 10M ohm (Min)
Conductive Resistance: 2 ohm (Max)
Working Temperature: -25ºC ~ +85ºC |
|
|
|
External Mini-SAS(SFF8088) to External 4X SAS(SFF8470) copper patch cord is compliant to SAS-2.1 specifications. It can transfer data at distances up to 6m.The Infiniband type 4x SAS connector is available with Thumbscrew,Squeeze to release and Pull latching styles and the SFF8088 Mini-SAS connector is available in both Push and Press latching styles
|
|
|
|
Length: Available from 0.3m up to 1m
Wire Size (AWG): 24~28AWG
Latch style for SFF8470: Screw, Squeeze and Pull styles available.
Connector A = SFF-8088 (External Mini-SAS Universal Key)
Connector B = SFF-8470 (External 4x SAS)
Impedance: 100 Ohms
Compliant to SAS-2.1 specifications
UL approved components |
|
|
|
|
