MiniSAS Cable

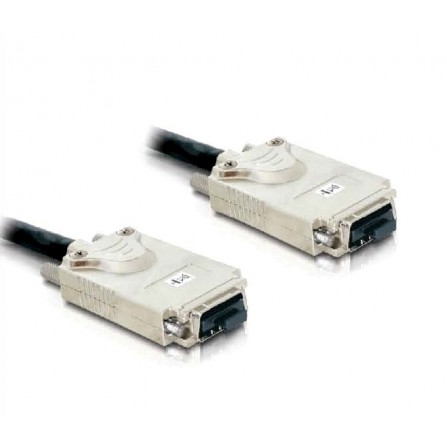

InfiniBand(CX4) to InfiniBand(CX4) Cable

Product No: 6799507

SFF8470 to SFF8470



Characteristics:
Cable End   Cable Assembly
Description:
InfiniBand(CX4) to InfiniBand(CX4) Cable
Feature:
External 4X SAS (SFF8470) to External 4X SAS (SFF8470) copper patch cord is compliant to SAS-2.1 specifications at distances up to 6 meters.The Infiniband type 4x SAS connector is available with Thumbscrew, Squeeze to release and Pull latching styles.
Specifications:
Length: Length: Available from 0.3m up to 1m
Wire Size (AWG): 24~28AWG
Latch style for SFF8470: Screw, Squeeze and Pull styles available.
Connector A = SFF-8470 (External 4x SAS)
Connector B = SFF-8470 (External 4x SAS)
Impedance: 100 Ohms
Compliant to SAS-2.1 specifications
ROHS complaint
UL approved components
