MiniSAS Cable

Internal MiniSAS SFF-8087 to SFF-8087 InfiniBand

Product No: 6799505

Internal MiniSAS SFF-8087 to SFF-8087 InfiniBand

Internal MiniSAS Cable assembly.It is used for connecting a SATA/SAS controller to a SATA/SAS backplane.

Features

●Provides point-to-point signal integrity.

●Compatible with SAS-to-SATA.

●High-speed data transmission line used on server, storage system, disk array and high-speed Internet connections.

●Thinner and more flexible cables allow for more efficient and flexible routing.

Characteristics:

Cable End

Cable Assembly

Pin

Description:

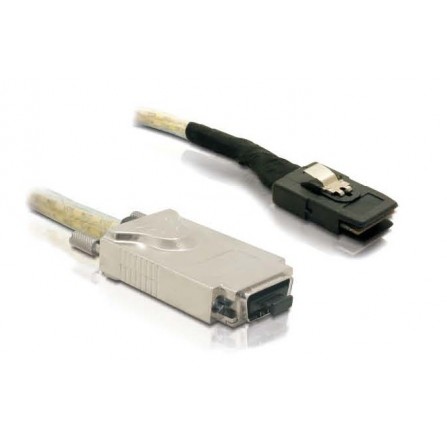

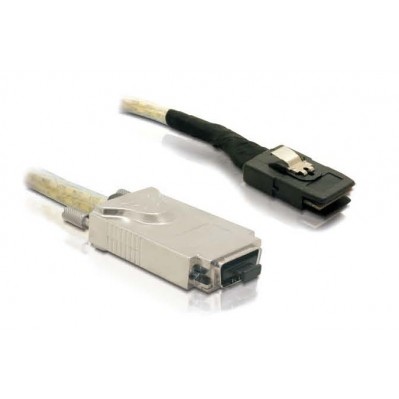

Internal Mini-SAS(SFF-8087) to InfiniBand(SFF-8470) Cable

Feature:

Our 36 position Internal Mini-SAS(SFF8087) to External 4X SAS

															SFF 8470) copper patch cord provides data rates of up to 6 Gbps at

															a distance of 1 meter and is compliant to SAS-2.1. This cable is used

															for connecting a 4X SAS Host(SFF-8470) to Mini SAS Target

															(SFF-8087). The 4x SAS connector is available with

															Thumbscrew,Squeeze to release or Pull latching styles and the

															SFF8087 Mini-SAS connector is available in a Press latching style.

Specifications:

Length: Available from 0.3m up to 1m

															Wire Size (AWG): 26~30AWG

															Latch style for SFF8087: Press style

															Latch style for SFF8470: Squeeze, Screw and Pull styles

															Connector A: SFF-8087 (Internal Mini SAS)

															Connector B: SFF8470 (External 4X SAS)

															Impedance: 100 Ohms

															Compliant to SAS-2.1 specifications

															ROHS complaint

															UL approved components
