HDminiSAS Cable

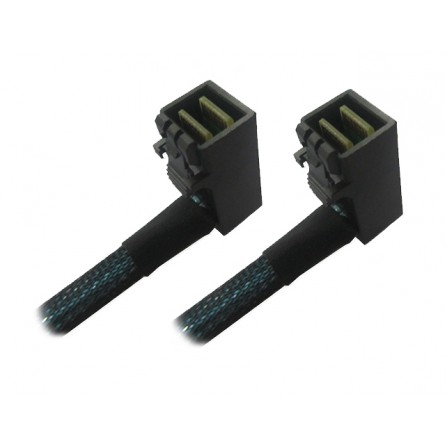

Internal HDmini SAS SFF-8643 RA to Internal HDmini SAS

Product No: 6799528

Internal HDmini SAS SFF-8643 RA to Internal HDmini SAS

HDminiSAS is designed for connecting to a SATA mass storage device.

Applications

●Data/Communications

●RAID (Redundant Array of Independent Disks )

●Workstations

●Rack-mount server

●Servers

●Storage rack

Features and Benefits

●Transmission rate 12 Gbps.

●Meet SAS3.0 specification.

Characteristics:

Cable End

Cable Assembly

Description:

HD MiniSAS Internal cable configurations (SFF-8643) 90 degrees.

						The new Internal High Density (HD) MiniSAS cables are now available for SAS 2.1, 6Gb/s and will translate to the SAS 3.0, 6Gb/s specification when it is released. Like the external HD MiniSAS, this new connector uses less PCB real estate and allows higher port density for internal hosts and devices. Hybrid versions of these new cables will allow for a smooth transition from 6Gb.

Feature:

>Length =Available from 0.3m up to 1m

						>Wire Size (AWG) = 30

						>Connector A = Internal Mini SAS HD (SFF-8643)

						>Connector B = Internal Mini SAS HD (SFF-8643)

						>Impedance = 100 Ohms

						>Data Rate = 6.00 Gb/s

						>Degree = Right Angle(90∘)

						Applications:

						>Fibre Channel

						>InfiniBand

						>SAS 2.1 (Serial Attached SCSI) compliant
